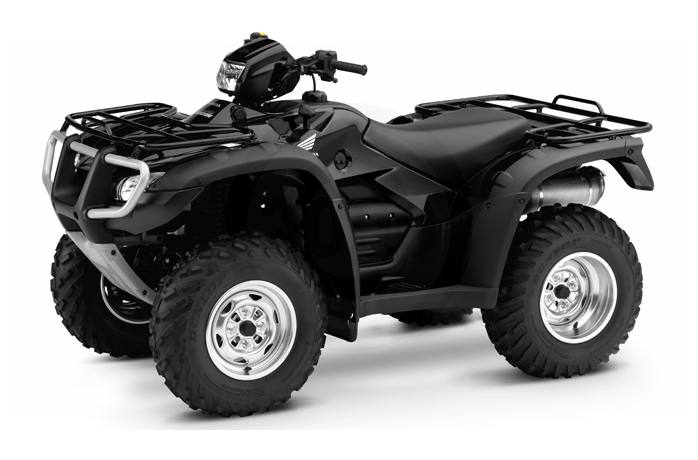

2009 Honda FourTrax Foreman Rubicon

only a few of these left!! dont wait too long!

Now until September 30, 2010
$600.00 Off MSRP
Request a Quote Financing Calculator Financing Form
Request a Quote Financing Calculator Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    ENGINE
    • Engine Type: 499 cc Liquid-Cooled OHV Dry-Sump Longitudinally Mounted Single-Cylinder Four-Stroke
    • Bore x Stroke: 92 x 75 mm
    • Induction: 36 mm Constant Velocity Carburator
    • Ignition: CD With Electronic Advance
    • Starter: Electic With Auxiliary Recoil
    DRIVE TRAIN
    • Clutch: Automatic
    • Transmission: Fully Automatic Hydromechanical, Continuously Variable With Electronic Controls
    • Driveline: Direct Front And Rear Drive-Shafts With Torque-Sesitive Front Differential
    CHASSIS/SUSPENSION/BRAKES
    • Front Suspension: Independent Double-Wishbone, 6.7 in. Travel
    • Rear Suspension: Swingarm With Dual Shock Absorbers, 6.7 in. Travel
    • Front Brakes: 180 mm Front Discs With Single-Piston Calipers
    • Rear Brakes: Sealed Machanical Drum
    • Front Tires: 25x8-12
    • Rear Tires: 25x10-12
    DIMENSIONS
    • Length: 83 in.
    • Width: 46.8 in.
    • Height: 46.4 in.
    • Wheelbase: 50.6 in.
    • Seat Height: 33.9 in.
    • Ground Clearance: 7.5 in.
    • Towing Capacity 850 lbs. Towing Capacity: 850 lbs.
    • Curb Weight 633 lbs. Curb Weight: 633 lbs.
    • Fuel Capacity 4.1 gal. (Including Reserve) Fuel Capacity: 4.1 gal. (Including Reserve)
    • Available Colors Red, Olive, Black, Camo Available Colors: Red, Olive, Black, Camo
    FACTORY WARRANTY INFORMATION
    • Warranty: One Year, Transferable, Unlimited Mileage Limited Warranty, Extended Coverage Available With A Honda Protection Plan

    Specifications

    Engine
    Engine Type OHV Dry-Sump Longitudinally Mounted Four-Stroke
    Displacement 499 cc
    Bore x Stroke 92 x 75 mm
    Cylinders Single-Cylinder
    Engine Cooling Liquid-Cooled
    Fuel System 36 mm Constant Velocity Carburator
    Starting System Electic With Auxiliary Recoil
    Chassis
    Front Suspension Independent Double-Wishbone
    Front Travel 6.7 in.
    Front Brake Type 180 mm Front Discs With Single-Piston Calipers
    Front Tires 25x8-12
    Rear Travel 6.7 in.
    Rear Suspension Swingarm With Dual Shock Absorbers
    Rear Brake Type Sealed Machanical Drum
    Rear Tires 25x10-12
    Dimensions/Capacities
    Dry Weight 850 lbs.
    Towing Capacity 850 lbs.
    Fuel Capacity 4.1 gal. (Including Reserve)
    Ground Clearance 7.5 in.
    Machine Dimensions (LxWxH) 83 x 46.8 x 46.4 in.
    Wheelbase 50.6 in.
    Drive Train
    Drive Train Direct Front And Rear Drive-Shafts With Torque-Sesitive Front Differential
    Final Drive Direct front and rear driveshafts with torque-sensitive front differential
    Transmission Fully Automatic Hydromechanical, Continuously Variable With Electronic Controls
    General
    Colors Red, Olive, Black, Camo
    Warranty One Year, Transferable, Unlimited Mileage Limited Warranty, Extended Coverage Available With A Honda Protection Plan

    Compare Models

    		 Print








    Year 2009
    Manufacturer Honda
    Model FourTrax Foreman Rubicon
    Style Utility
    MSRP* $7,699.00
    Chassis
    Front Suspension Independent Double-Wishbone
    Front Travel 6.7 in.
    Front Brake Type 180 mm Front Discs With Single-Piston Calipers
    Front Tires 25x8-12
    Rear Suspension Swingarm With Dual Shock Absorbers
    Rear Travel 6.7 in.
    Rear Brake Type Sealed Machanical Drum
    Rear Tires 25x10-12
    Frame
    Dimensions/Capacities
    Dry Weight 850 lbs.
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity 850 lbs.
    Fuel Capacity 4.1 gal. (Including Reserve)
    Ground Clearance 7.5 in.
    Machine Dimensions (LxWxH) 83 x 46.8 x 46.4 in.
    Wheelbase 50.6 in.
    Drive Train
    Drive Train Direct Front And Rear Drive-Shafts With Torque-Sesitive Front Differential
    Final Drive Direct front and rear driveshafts with torque-sensitive front differential
    Transmission Fully Automatic Hydromechanical, Continuously Variable With Electronic Controls
    Engine
    Engine Type OHV Dry-Sump Longitudinally Mounted Four-Stroke
    Displacement 499 cc
    Bore x Stroke 92 x 75 mm
    Cylinders Single-Cylinder
    Engine Cooling Liquid-Cooled
    Fuel System 36 mm Constant Velocity Carburator
    Starting System Electic With Auxiliary Recoil
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting
    Colors Red, Olive, Black, Camo
    Warranty One Year, Transferable, Unlimited Mileage Limited Warranty, Extended Coverage Available With A Honda Protection Plan
