Honda FourTrax Rancher AT Steadman Recreation Inc Tooele, UT (800) 789-1234

Showcase Product Detail

New Equipment » Honda » FourTrax Rancher AT

	Starting At: $6,699.00

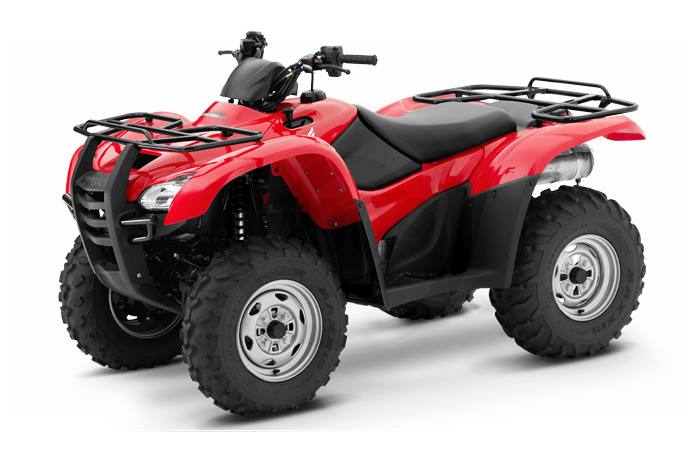

2009 Honda FourTrax Rancher AT

Request a Quote

Financing Calculator

Financing Form

Red

Click on a thumbnail to view larger image.

View All Thumbnails Hide Thumbnails

Request a Quote

Financing Calculator

Financing Form

OEM Overview
Specifications
Compare Models
Current Promotions

Overview

Print Brochure

ENGINE

Engine Type: 420 cc Liquid-Cooled OHV Semi-Dry-Sump Longitudinally Mounted Single-Cylinder Four-Stroke
Bore x Stroke: 86.5 x 71.5 mm
Induction: Programmed Fuel Injection (PGM-FI), 34 mm Throttle Bodies
Carburetion: 36 mm CV
Ignition: Full-Transistorized Type With Electronic Advance
Starter: Electic With Optional Auxiliary Recoil

DRIVE TRAIN

Transmission: Automatic/ESP Five-Speed With Reverse
Driveline: Direct Front And Rear Driveshafts

CHASSIS/SUSPENSION/BRAKES

Front Suspension: Independent Double-Wishbone, 6.3 in. Travel
Rear Suspension: Independent Double-Wishbone, 6.3 in. Travel
Front Brakes: Dual Hydraulic Disc
Rear Brakes: Single Hydraulic Disc
Rear Brake: Sealed Mechanical Drum
Front Tires: 24x8-12
Rear Tires: 24x10-11

DIMENSIONS

Length: 80.9 in.
Width: 46.1 in.
Height: 45.1 in.
Wheelbase: 49.4 in.
Seat Height: 32.4 in.
Ground Clearance: 9.1 in.
Turning Radius: 10.5 ft.
Curb Weight: 623 lbs.
Fuel Capacity: 3.5 gal. (Including Reserve)
Available Colors: White, Red, Olive, Natural Gear Camouflage

FACTORY WARRANTY INFORMATION

Warranty: One Year, Transferable, Unlimited Mileage Limited Warranty, Extended Coverage Available With A Honda Protection Plan

Specifications

Engine
Engine Type	OHV Semi-Dry-Sump Longitudinally Mounted Four-Stroke
Displacement	420 cc
Bore x Stroke	86.5 x 71.5 mm
Cylinders	Single-Cylinder
Engine Cooling	Liquid-Cooled
Fuel System	Programmed Fuel Injection (PGM-FI), 34 mm Throttle Bodies
Starting System	Electic With Optional Auxiliary Recoil
Chassis
Front Suspension	Independent Double-Wishbone
Front Travel	6.3 in.
Front Brake Type	Dual Hydraulic Disc
Front Tires	24x8-12
Rear Suspension	Independent Double-Wishbone
Rear Travel	6.3 in.
Rear Brake Type	Rear Brakes: Single Hydraulic Disc; Rear Brake: Sealed Mechanical Drum
Rear Tires	24x10-11
Dimensions/Capacities
Dry Weight	623 lbs.
Fuel Capacity	3.5 gal. (Including Reserve)
Ground Clearance	9.1 in.
Machine Dimensions (LxWxH)	80.9 x 46.1 x 45.1 in.
Wheelbase	49.4 in.
Drive Train
Drive Train	Direct Front And Rear Driveshafts
Final Drive	Direct front and rear driveshafts
Transmission	Automatic/ESP Five-Speed With Reverse
General
Colors	White, Red, Olive, Natural Gear Camouflage
Warranty	One Year, Transferable, Unlimited Mileage Limited Warranty, Extended Coverage Available With A Honda Protection Plan

Compare Models

Chassis

Year	2009
Manufacturer	Honda
Model	FourTrax Rancher AT
Style	Utility
MSRP*	$6,699.00
Front Suspension	Independent Double-Wishbone
Front Travel	6.3 in.
Front Brake Type	Dual Hydraulic Disc
Front Tires	24x8-12
Rear Suspension	Independent Double-Wishbone
Rear Travel	6.3 in.
Rear Brake Type	Rear Brakes: Single Hydraulic Disc; Rear Brake: Sealed Mechanical Drum
Rear Tires	24x10-11
Frame
Dimensions/Capacities
Dry Weight	623 lbs.
Front Rack Capacity
Rear Rack Capacity
Towing Capacity
Fuel Capacity	3.5 gal. (Including Reserve)
Ground Clearance	9.1 in.
Machine Dimensions (LxWxH)	80.9 x 46.1 x 45.1 in.
Wheelbase	49.4 in.
Drive Train
Drive Train	Direct Front And Rear Driveshafts
Final Drive	Direct front and rear driveshafts
Transmission	Automatic/ESP Five-Speed With Reverse
Engine
Engine Type	OHV Semi-Dry-Sump Longitudinally Mounted Four-Stroke
Displacement	420 cc
Bore x Stroke	86.5 x 71.5 mm
Cylinders	Single-Cylinder
Engine Cooling	Liquid-Cooled
Fuel System	Programmed Fuel Injection (PGM-FI), 34 mm Throttle Bodies
Starting System	Electic With Optional Auxiliary Recoil
Alternator
General
Speedometer
Tachometer
Odometer
Lighting
Colors	White, Red, Olive, Natural Gear Camouflage
Warranty	One Year, Transferable, Unlimited Mileage Limited Warranty, Extended Coverage Available With A Honda Protection Plan

Current Promotions

There are currently no promotions available for this product.
